Canon EOS R Mirrorless Digital Camera (Body)

^ When shooting still photos. Actual coverage varies depending on the lens in use.

The EOS R camera features a sophisticated AF system with a maximum of 5,655 manually selectable AF points**, which covers almost the entire image sensing area. The EOS R can also be configured to focus on specific areas, using an extended range of selectable modes that include 1-point AF, Expand AF Area, Zone AF and Large Zone AF in addition to the conventional Face+Tracking AF.

** Available AF points may decrease when shooting with AF cropping or in movie mode, or depending on camera settings or lens attached.

EV -6^^ Low-light Autofocus

Amazing for nighttime photography or in very low light, the EOS R camera's brilliant AF can operate in light as dim as a light rating of EV -6^^ where other AF systems may fail or search. Phenomenal AF is achieved even when using lenses with high F numbers. This ultra-sensitive AF works in concert with the EOS R's EVF to clearly capture subjects even when there's limited light.

^^ When using RF 50mm F1.2 L USM, with central AF point.

f/8 and f/11 Compatible in All AF Areas

The EOS R camera's brilliant AF system doesn't just work with bright lenses. With the EOS R, autofocus will operate over nearly the entire image area even when used with compatible f/8 and f/11 lenses. For example, users can take ultra-telescopic 800mm shots using a compact EF 100–400mm f/4–5.6 IS II lens together with an EF 2x III extender, and AF will function properly over the entire field. When used with a III-type extender, the effective AF range is limited to an area roughly 88% x 100% of the total image frame, or 80% x 80% if combined with a I/II type extender.

The EOS R camera's Face+Tracking mode helps enhance reliability for tracking moving subjects. When the camera detects a human face, it uses the subject's eye as the AF point, choosing the eye closest to the camera by default. Photographers can also select which eye to focus on by touching the screen or using the camera's AF point selection button and cross keys.

Touch and Drag AF makes it fast and easy to select a focus point without taking your eye away from the viewfinder. Using the Touchscreen LCD, it's as simple as pointing to the desired area of focus. The chosen AF point is then displayed in the camera's EVF for quick confirmation.

Focus Peaking

Among the EOS R camera's manual focus aids, Focus Peaking helps establish the focus area quickly and clearly. With manual focus peaking, the outline of the area in focus is indicated by a colored line. Focus Peaking is usable in conjunction with the EOS R's Focus Guide feature, and can be customized with peaking color and detection level specifications that fit the project at hand.

For help when using manual focus while recording videos and shooting still images, the EOS R camera's Dual Pixel Focus Guide not only indicates when subjects are in focus, but also displays where the position of focus is relative to the subject. This function can be combined with Zone AF or Face Detection AF as well.

4K 30p, Full HD 60p, HD 120p

Whether shooting videos to share with friends online or serving as a secondary camera on a large production, the EOS R camera offers advanced recording features such as 4K at 29.97 fps, Full HD at 59.94 fps and HD at 119.9 fps. Helpful functions include distortion correction during recording and Movie Digital IS. Additionally, video can be recorded during still photo shooting by simply pressing the Movie Shooting button.

Canon Log is included in the EOS movie gamma selections. This feature reduces heavy shadows and blown out highlights, delivering movie images with approximately 12 stops of dynamic range (at ISO 400) for excellent shadow and highlight detail. Especially useful for moviemakers and videographers planning on using video clips in post-production and integrating EOS R footage with clips from other cameras, Canon Log is an indispensable tool that helps make the EOS R a serious movie camera.

10-bit 4:2:2 HDMI Output

For advanced video capture and for generating video that can be incorporated with footage shot on other cameras in post-production, the EOS R camera has an HDMI port that can output 4K video directly to an external drive. The camera can also output 10-bit movie footage in ITU-R BT.2020 color when Canon Log setting is activated.

Headphone Jack

To help confirm the clarity and levels of sound being recorded, the EOS R camera is equipped with a 3.5mm diameter stereo mini jack for use of compatible headphones when recording video. It has a maximum output level of -14dBV, helping deliver audible and high-quality audio to wired headphones.

Microphone Input

For use with an external microphone, the EOS R camera has a 3.5mm diameter stereo mini jack in addition to its built-in stereo microphone. Particularly useful in situations with specific sound recording needs, the EOS R's compatibility with external microphones helps ensure that sound recordings complement the quality of the captured footage.

4K IPB/ALL-I MP4 H.264

The EOS R camera can record 4K video using IPB or ALL-I compression and save them as MP4 files. This helps provide further flexibility with both file size, image quality and integration with video clips recorded with other cameras.

0.5-type OLED EVF with Approx. 3.69 Million Dots

The EOS R camera features a high-precision 0.5-inch OLED (Organic Light-Emitting Diode) EVF with approx. 3.69 million dots and a 23mm eyepoint. Displaying a bright image and extensive shooting information that rotates with the camera, the viewfinder excels in bright conditions where viewing the camera's LCD may prove difficult.

The EOS R's electronic viewfinder has been created to provide a bright, sharp and colorful 100% view of the subject at hand. Equipped with an aspherical lens, the EVF shows a crisp and vivid image with minimal aberration or distortion, even when the eye moves off the center of the visual field.

The EOS R's EVF has a bright, 23mm-high eyepoint design that creates a generous 30mm space between your nose and the rear of the viewfinder. This makes it easy to compose and view images in the viewfinder with or without glasses. A dioptric adjustment of -4 - +2 means it's simple to change as needed to suit various users.

The EVF's 0.5-inch OLED based display features approximately 3.69 million dots for an incredibly sharp and detailed image that makes it easy to check focus and view the extensive image data that's displayed.

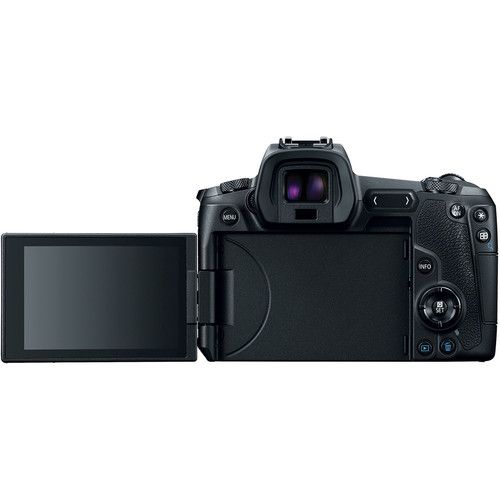

The EOS R camera features a 3.15-inch, 2.1 Megapixel Clear View LCD II Vari-angle Touchscreen LCD. Brightness is adjustable in seven levels and four types of color adjustment are supported, including warm and cool tones. Its extensive flexibility makes it easy to compose and shoot from virtually any angle, making selfies simple and enabling the LCD to fold away when not in use. The brightness of the EVF and the LCD monitor can even be adjusted individually - a first for an EOS camera. Touchscreen features include settings, review and even AF point selection.

An LCD panel on the top of the camera features a dot-matrix display that shows information on the camera's status, recording mode and more. It gives real-time setting information both when the camera is in use or on standby, and can be inverted from black to white to suit viewing preferences or the ambient light source. For convenience, the LCD remains on even when the camera is powered down.

With a compact, lightweight and comfortable design, the EOS R camera reflects Canon's decades of experience designing and manufacturing cameras. With an intelligent layout of buttons, dials and screens, the EOS R is intuitive for new users and feels familiar to EOS users, offering the advanced features and nimble operation EOS users demand.

Although relatively compact in size, the camera features a large, ergonomic grip that makes the camera easy and comfortable to hold, even for long stretches of time. The EOS R's shutter button is even positioned atop the camera grip in a way that's easy to access and will feel familiar to any EOS user. With the EOS R's thoughtfully designed grip, shutter position and button layout, switching between the EOS R and other EOS cameras can be both comfortable and intuitive.

The EOS R camera is designed and engineered to create a balanced and reliable user experience. Whether shooting with the impressive RF 28-70mm F2 L USM's zoom, with the compact RF 35mm F1.8 Macro IS STM or with an EF lens with adapter and extender attached, the EOS R's deep grip, even weight and shallow body reflect a thoughtful design that's ideal for extended use.

Fv Mode

The EOS R camera features an all-new Flexible-priority AE mode. With Fv mode, shutter speed, aperture setting and ISO sensitivity are set automatically by default, and change according to the setting changes the photographer makes. This gives the user the freedom to specify or change aperture, shutter speed or ISO sensitivity, without having to change modes, providing confidence that the camera will select the correct corresponding settings.

All RF lenses feature a control ring on the lens barrel, which expands the EOS R camera's direct control options by offering numerous adjustments and operations such as exposure compensation, or aperture value, and can be customized to suit the preferences of the user. A clicking mechanism indicates setting changes. For photographers and moviemakers who would prefer a silent control ring, the clicking mechanism can be removed by a Canon service provider for a fee.

The EOS R camera's newly designed multi-function bar provides a high level of functionality and customization options for fast, intuitive shooting. Positioned to sit right under the thumb, the multi-function bar recognizes three touch actions: swipe, left tap and right tap. This allows the user to change settings including AF mode, ISO sensitivity, white balance and movie modes; check manual focus and more. The bar can also be used to quickly browse finished photos or set shortcuts during playback.

Comfortable and solid in the hand, the EOS R camera features a rigid yet lightweight magnesium alloy chassis that enhances body durability while shielding the camera from electromagnetic radiation and heat. It also has a tempered front panel for internal rigidity.

The EOS R camera has a robust, electronically controlled focal-plane shutter that's rated to approx. 200,000 cycles for consistent and reliable use. It shoots as fast as 1/8000 sec. at up to 8 fps, and up to 5 fps with Servo AF.

The EOS R camera is designed for use in a variety of weather conditions. Sealing materials are used in critical areas like the buttons, terminal covers, the battery compartment and the card slot cover. Precise design and construction help to minimize accidental penetration of dust and moisture in the rest of the camera body. Combined with an RF lens, or any other weather-sealed EF/EF-S lens, the EOS R proves to be a reliable partner in virtually any climate.

Shutter Closes if Powered Off without Lens

The EOS R camera has a mechanism to close the shutter when the camera is powered down. A mechanical shutter sound is audible when the camera is turned on or off. To protect the shutter curtain, focus is moved to infinity for RF and EF lenses and the minimum aperture is set for RF lenses when the camera is turned off.
