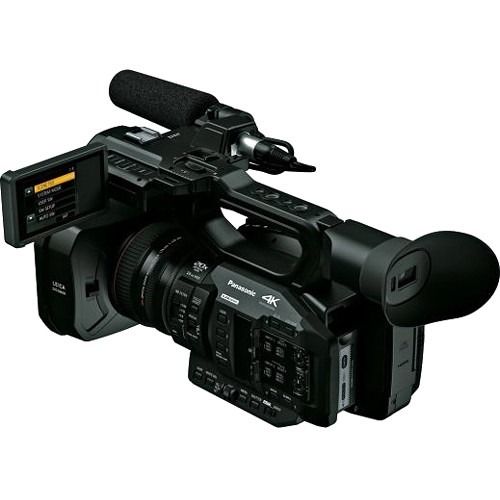

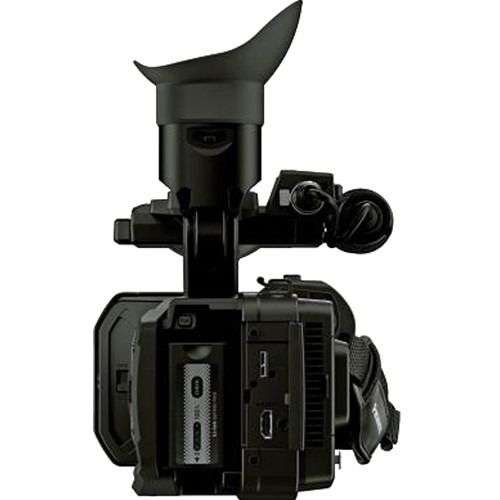

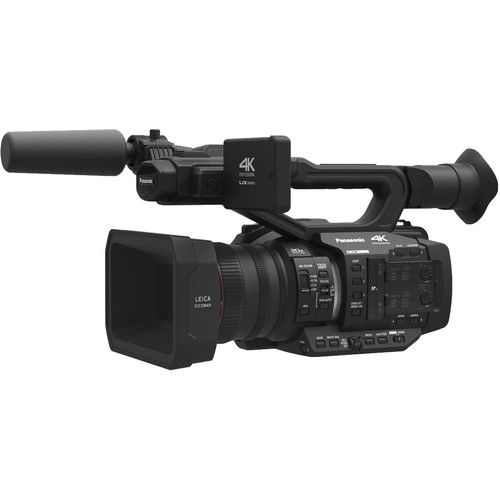

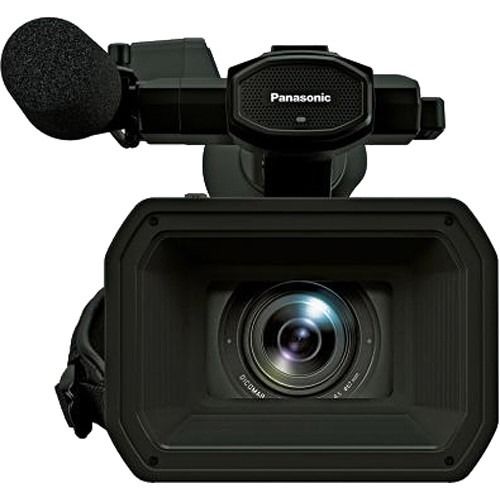

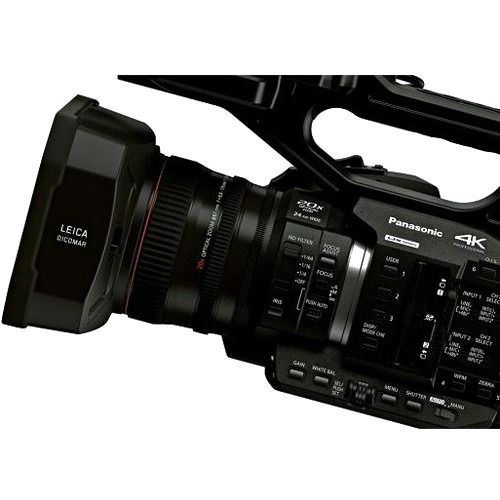

Panasonic AG-UX180 4K Premium Professional Camcorder

1.0-type (effective size) MOS solid state image sensor

Effective Pixels

8.79 megapixel: UHD/FHD 59.94p/29.97p/23.98p
9.46 megapixel: 4K 24p

Lens

Optical image stabilizer lens, optical 20x motorized zoom F2.8 to F4.5 (f=8.8 mm to 176 mm)

35 mm equivalent:
f=25.4 mm to 508.0 mm: UHD/FHD 59.94p/29.97p/23.98p
f=24.0 mm to 480.0 mm: 4K24.00p
Filter Diameter: 67 mm
ND Filter: 4 Positions (OFF, 1/4, 1/16, 1/64)
IR Filter: Incorporates the ON/OFF control function
Shortest Shooting Distance (M.O.D.): Approx. 1.0 m from the front lens

Gain Setting

L/M/H selector switch:
Standard mode: 0 dB to 24 dB (Adjustable in 1 dB steps) (Automatic setting can be assigned to L/M/H)
Extended ON: -3 dB to 24 dB (Adjustable in 1 dB steps) (Automatic setting can be assigned to L/M/H); 30 dB and 36 dB switched(when assigning [S. GAIN] to the USER button)

Color Temperature Setting

ATW, ATW LOCK, Ach, Bch, preset 3200 K/preset 5600 K/VAR (2000 K to 15000 K)

Shutter Speed

When [SYSTEM MODE] = 59.94 Hz
60i/60p mode: 1/60 sec., 1/100 sec., 1/120 sec., 1/180 sec.,1/250 sec., 1/350 sec., 1/500 sec., 1/750 sec., 1/1000 sec.,1/1500 sec., 1/2000 sec., 1/3000 sec., 1/4000 sec., 1/8000 sec.30p mode: 1/30 sec., 1/50 sec., 1/60 sec., 1/100 sec., 1/120 sec.,1/180 sec., 1/250 sec., 1/350 sec., 1/500 sec., 1/750 sec., 1/1000 sec.,1/1500 sec., 1/2000 sec., 1/3000 sec.,

Shutter Speed (Cont.)

When [SYSTEM MODE] = 59.94 Hz
1/4000 sec., 1/8000 sec.24p mode: 1/24 sec., 1/48 sec., 1/50 sec., 1/60 sec., 1/100 sec.,1/120 sec., 1/180 sec., 1/250 sec., 1/350 sec., 1/500 sec., 1/750 sec.,1/1000 sec., 1/1500 sec., 1/2000 sec., 1/3000 sec., 1/4000 sec., 1/8000 sec.

Shutter Speed (Cont.)

When [SYSTEM MODE] = 59.94 Hz
1/4000 sec., 1/8000 sec.24p mode: 1/24 sec., 1/48 sec., 1/50 sec., 1/60 sec., 1/100 sec.,1/120 sec., 1/180 sec., 1/250 sec., 1/350 sec., 1/500 sec., 1/750 sec.,1/1000 sec., 1/1500 sec., 1/2000 sec., 1/3000 sec., 1/4000 sec., 1/8000 sec.

Shutter Speed: Slow Shutter

When [SYSTEM MODE] = 59.94 Hz
60i/60p mode: 1/2 sec., 1/4 sec., 1/8 sec., 1/15 sec., 1/30 sec., 30p mode: 1/2 sec., 1/4 sec., 1/8 sec., 1/15 sec. 24p mode: 1/2 sec., 1/3 sec., 1/6 sec., 1/12 sec.

When [SYSTEM MODE] = 50.00 Hz
50i/50p mode: 1/2 sec., 1/3 sec., 1/6 sec., 1/12 sec., 1/25 sec. 25p mode: 1/2 sec., 1/3 sec., 1/6 sec., 1/12 sec

Shutter Speed: Synchro Scan

When [SYSTEM MODE] = 59.94 Hz
59.94i/59.94p mode: 1/60.0 sec. to 1/249.7 sec. 29.97p mode: 1/30.0 sec. to 1/249.7 sec. 23.98p mode: 1/24.0 sec. to 1/249.6 sec. 24.00p mode: 1/24.0 sec. to 1/249.9 sec.

When [SYSTEM MODE] = 50.00 Hz
50i/50p mode: 1/50.0 sec. to 1/250.0 sec. 25p mode: 1/25.0 sec. to 1/250.0 sec.

VFR Recording Frame Rate

When [SYSTEM MODE] = 59.94 Hz
30p mode: 2, 15, 26, 28, 30, 32, 34, 45, 60 (fps) 24p mode: 2, 12, 20, 22, 24, 26, 28, 36, 48, 60 (fps)

SYSTEM MODE = 50.00, Hz
25p mode: 2, 12, 21, 23, 25, 27, 30, 37, 50 (fps)

Super-Slow Motion Recording

When [SYSTEM MODE] = 59.94 Hz
Shooting frame rate FHD 120 fps, Slow motion effect 1/4 speed (when 30p mode), 1/5 speed (when 24p mode)

When [SYSTEM MODE] = 50.00 Hz
Shooting frame rate FHD 100fps, Slow motion effect 1/5 speed (when 25p mode)

Sensitivity

When [HIGH SENS.] mode
F11 (2000 lx, 3200 K, 89.9 % reflect, 1080/59.94i)
F12 (2000 lx, 3200 K, 89.9 % reflect, 1080/50i)

Minimum Subject Illumination

0.2 lx (F2.8, gain 18 dB, Manual slow shutter 1/2S, When [HIGH SENS.] mode)

Digital Zoom

2x/5x/10x, i.Zoom (max. 30x)

Lens Hood

Hood with lens cover

Recording Media

SDHC memory card (4GB to 32 GB)
SDXC memory card (48GB to 128 GB), UHS-I supported

Recording Slot

Slot x 2

System Format

59.94 Hz/50 Hz

Motion Picture Recording

Recording Format: MOV, MP4, AVCHD

2 Slot Functions

Relay, Simultaneous, 2x Background, Dual codec

Still Picture Recording Mode

JPEG (DCF/Exif2.2)

Still Picture Recording

Motion Picture Playback: 8.8M: 4096 x 2160 (17:9), 8.3M: 3840 x 2160 (16:9), 2.1M: 1920 x 1080 (16:9), 0.9M: 1280 x 720 (16:9)

Video Signal for External Output

8bit 4:2:2

Recording Video Signal

8bit 4:2:0

Video Compression Format

MPEG-4 AVC/H.264 High Profile (MOV/MP4/AVCHD)

Video Compression Format

MPEG-4 AVC/H.264 High Profile (MOV/MP4/AVCHD)

Recording Audio Signal

48 kHz/16 bit 2CH

Audio Signal Format

LPCM (MOV/MP4), Dolby Digital (AVCHD)

Audio Signal Format

LPCM (MOV/MP4), Dolby Digital (AVCHD)

Headroom

12 dB

Recording Method

MOV, MP4

Recording Format

When FHD 50 Mbps mode:
Main-Recording side (MOV/MP4): UHD 29.97p/25p/23.98p 100Mbps
Sub-Recording side (MOV/MP4): FHD 29.97p/25p/23.98p 50Mbps

When FHD 8 Mbps mode:
Main-Recording side (MOV/MP4): UHD 29.97p/25p/23.98p 100 Mbps; FHD 59.94p/50p/29.97p/25p/23.98p 200Mbps; FHD 59.94p/50p 100Mbps
Sub-Recording side MOV FHD 59.94p/50p/29.97p/25p/23.98p 8Mbps

Recording Time

FHD 50Mbps:
32 GB: Approx. 1 hour 20 min 64 GB: Approx. 2 hour 40 min 128 GB: Approx. 5 hours 20 min

FHD 8Mbps:
32 GB: Approx. 8 hours 30 min 64 GB: Approx. 17 hours 10 min 128 GB: Approx. 35 hours

Video SDI Out

BNC x 1, 0.8 V [p-p], 75 O, 3 G/1.5 G, HD SDI, SD SDI supported
Output format: 1080/59.94p LEVEL-A/50.00p LEVEL-A, 80/29.97PsF/25.00PsF/24.00PsF/23.98PsF, 1080/59.94i/50.00i, 720/59.94p/50.00p, 480/59.94i, 576/50.00i

Video Out

AV connector x 1

Video Input/Output: HDMI

Type A connector x 1, VIERA Link not supported v
Output format: 2160/59.94p/50.00p/29.97p/25.00p/24.00p/23.98p, 1080/59.94p/50.00p/29.97p/25.00p/24.00p/23.98p/59.94i/50.00i, 720/59.94p/50.00p, 480/59.94p, 576/50.00p

Built-in Microphone

Stereo microphone

XLR Input

XLR (3-pin) x 2 (INPUT1, INPUT2)
Input high impedance, LINE/MIC/MIC+48V (switchable SW)
LINE: +4 dBu/0 dBu (switchable menu)
MIC: -40 dBu/-50 dBu/-60 dBu (switchable menu)

Audio: SDI Output

2 ch (LPCM) switchable gain: 0 dB/-6 dB/-12 dB

Audio Output: HDMI

2 ch (LPCM)

Audio Out

V connector x 1, Output level: 600 ohms, 316 mV

Headphone

3.5 mm diameter stereo mini jack

Speaker

20 mm diameter, round

Camera Remote Input/Output

2.5 mm diameter super mini jack x1 (ZOOM, S/S)
3.5 mm diameter mini jack x1 (FOCUS, IRIS)

TC Preset In/Out:

BNC x 1, Used as the input and output terminals
Input: 1.0 V to 4.0 V [p-p] 10 KOhms
Output: 2.0 V +/- 0.5 V [p-p] low impedance

USB 3.0 Host

Standard-A connector, 9-pin, external media device connection, bus power supported

USB 3.0 Device

Micro-B connector, 10-pin, Mass storage function (read only)

DC IN 12V

DC 12V (11.4V to 12.6V) EIAJ Type4

LCD Monitor

3.5 type LCD color monitor, Approx. 1,150,000 dots

Viewfinder

0.39 type OLED (organic EL display); Approx. 2,360,000 dots, video display area: approx. 1,770,000 dots

Power

DC 7.28 V (when the battery is used)
DC 12 V (when the AC adaptor is used)

Power Consumption

19.7 W (when the LCD monitor is used)

Operating Temperature

0 to 40 deg. C (32 to 104 deg. F)

Operating Humidity

10 % to 80 % (no condensation)

Dimensions (W x H x D)

173 x 195 x 346mm (6.81 x 7.68 x 13.62") (excluding protrusion and eye cup)
173 x 195 x 392mm (6.81 x 7.68 x 15.43") (including eye cup, excluding protrusion)
