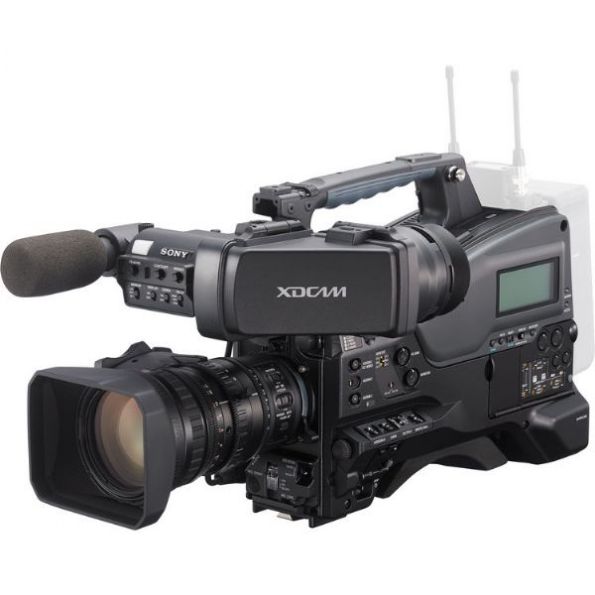

Sony PXW-X320 Full HD XDCAM Handheld Camcorder


Sony PXW-X320 Full HD XDCAM Handheld Camcorder Sony PXW-X320 Full HD XDCAM Handheld Camcorder
Availability: In Stock
SKU: 428507
BRAND: Sony
CONDITION: New

EXTENDED WARRANTIES AVAILABLE

You Pay:
$7,529.00
  • Old price: $9,009.00
  • Add to Wishlist

Filters & Filter Kits

Memory & Digital Media

Microphones & Light Meters

Tripods & Monopods

Screen Protectors & Cleaning Kits

The Sony PXW-X320 is a high-performance SxS memory camcorder which inherits field-proven operability from the reputable PMW-320. The PXW-X320 is a part of the XDCAM HD422 family and comes equipped with cutting-edge imaging technology – three 1/2-inch-type Full-HD Exmor CMOS sensors with an extremely high S/N ratio – and with the Flash Band Reducer feature to provide outstanding picture quality. The PXW-X320 supports XAVC offering high quality content creation in the HD domain. In addition to XAVC, MPEG HD422, MPEG HD, MPEG IMX, and DVCAM formats are also supported. Two HD/SD-SDI, HDMI, i.LINK™, and composite outputs provide a wide range of AV and IT interfaces. The PXW-X320 also supports wireless operation using an optional adapter, the CBK-WA101 (sold separately). This enables easy and quick clip data transmission to broadcast stations, saving the time and transportation cost of shot clip delivery. With various functions inherited from Sony’s world-acclaimed XDCAM camcorders and yet highly cost effective with lens included, the PXW-X320 is an ideal choice for many different camera professionals, from those engaged in news gathering, when speed is the key concern, to those who produce TV programs and documentaries, when quality is crucial. High Picture Quality - The PXW-X320 incorporates three1/2"-type Full HD Exmor CMOS sensors (1920 x 1080) to achieve highresolution, high sensitivity (F11 at 59.94 Hz / F12 at 50 Hz), low noise (60dB), and a wide dynamic range to give more freedom of expression for creativeshooting. Three-Dimensional Noise Reducer - In addition to existingnoise reduction features, the PXW-X320 also includes a three-dimensional noisereducer. This not only detects vertical and horizontal direction in a framepicture but also noise components in a time axis, utilizing correlationcharacteristics between video frames. Using this feature, the S/N ratio isimproved to 60 dB, which is the highest level of noise reduction in a1/2"-type Full HD shoulder camcorder. Selectable Format and Bit Rates - The PXW-X320incorporates XAVC in the HD domain at a 100 Mbps data rate, enabling thecreation of rich content with 10-bit quality. It is capable of recording XVACIntra at 1920 x 1080 Full HD 59.94i, 50i, 29.97p, 25p and 23.98p, or 1280 x720 HD 59.94p and 50p. The camcorder can also record Full HD video (1920 x1080) at up to 50 Mbps using XAVC Long and MPEG HD422, as well as MPEG HD at35 Mbps / 25 Mbps, MPEG IMX at 50 Mbps, and DVCAM at 25 Mbps in MXF file, asstandard supported formats. High Resolution 3.5" Color LCD Viewfinder - With alarge, easy-to-read 3.5" QHD color LCD viewfinder as a standard accessory,the PXW-X320 offers outstanding resolution of 960 x 540 pixels, stronglysupporting critical focus control during HD shooting. The viewfinder cover canbe flipped up to enhance visibility when the camera is set on a tripod. Wireless Adaptor Increases Operational Flexibility - ThePXW-X320 is designed to support wireless operation using an optional wirelessadapter, the CBK-WA101, which can be attached without any additional cables.Using this adapter, you can stream out pictures for live shooting via an IPnetwork. After shooting, you can select a recorded proxy or high resolution*file from the list and upload it to an on-premises server or to a cloudservice via a mobile Wireless LAN router or 3G/4G/LTE device. The adapter alsoprovides live monitoring and remote control of the PXW-X320 by mobile tabletor smartphone with mobile application software. * A USB connection isrequired.  Enhanced Flash Band Reducer - Incorporating a newlydeveloped algorithm, the PXW-X320 detects and processes flash banding insideits hardware before recording begins. This provides greater flexibility inreducing flash banding across different shooting environments. This featurecan be disabled from the menu if you want to use Content Browser for flashband reduction after shooting. You are free to choose to reduce flash bandbefore or after shooting, depending on each shooting circumstance. Customizable Menu - The PXW-X320 has a User Menu featurethat is typically associated only with high-end camcorders. This featureallows you to pick and organize frequently used menu items much in the sameway as the bookmark feature of a web browser. By using this feature, you cansave a lot of time – you won’t have to repeatedly search for specific menuitems – and experience more efficient operation. Variety of Interfaces, Including SD / HD-SDI and i.Link- Two lines of SDI output connection are provided by thePXW-X320. This enables, for example, the director and camera operator toconcurrently check shot content via two separate monitors. Also, formonitoring purposes this camcorder can be connected via HDMI to professionaldisplays as well as domestic-use TVs with an HDMI connector. The i.LINKconnector can be used for HDV when SP 1440 (FAT) mode is selected and for DVwhen DVCAM (FAT) mode is selected, for both input and

Image Device 3-chip 1/2"-type Exmor Full HD CMOS
Resolution 1920 x 1080
Optical System f/1.6 prism system
Lens Mount 1/2"-type Sony Bayonet
Built-In Filters 1: Clear
2: 1/4ND
3: 1/16ND
4: 1/64ND
Shutter Speed 1/60 sec to 1/2,000 sec + ECS (Extended Clear Scan)
Slow Shutter Speed 2, 3, 4, 5, 6, 7, 8, 16, 32, 64-frame accumulation
Slow & Quick Motion Function 720p: Frame rate selectable from 1 fps to 60 fps
1080p: Frame rate selectable from 1 fps to 30 fps
Sensitivity 59.94i: F11 (typical) (1920 x 1080)
50i: F12 (typical) (1920 x 1080)
Minimum Illumination 1920 x 1080i 59.94: 0.05 lx (F1.6, +42 dB gain, with 64-frame accumulation)
White Balance Preset (3200K)
Memory A
Memory B / ATW
Gain -3, 0, 3, 6, 9, 12, 18, 24 dB
S / N Ratio 60 dB
Horizontal Resolution 1,000 TV lines or more (1920 x 1080i mode)
LCD Visual Display Black & White LCD Display
Audio Level
TC
Battery and Media remaining
Recording
Media Card Slots 2 x SxS
1 x SD
Recording Format XAVC-I mode: CBR, 112Mbps max, MPEG-4 AVC/H.264
XAVC-L50 mode: VBR, 50Mbps, MPEG-4 AVC/H.264
XAVC-L35 mode: VBR, 35Mbps, MPEG-4 AVC/H.264
XAVC-L25 mode: VBR, 25Mbps, MPEG-4 AVC/H.26
MPEG-2 Long GOP:
HD 422 mode: CBR, 50 Mbps max., MPEG-2 422P@HL
HQ mode: VBR, 35 Mbps max., MPEG-2 MP@HL
SP mode: CBR, 25 Mbps, MPEG-2 MP@H-14
SD mode : MPEG IMX, DVCAM
Frame Rates XAVC I
1920 x 1080p: 29.97 / 25 / 23.98
1920 x 1080i: 59.94 / 50
1280 x 720p: 59.94 / 50

XAVC Long
1920 x 1080p: 29.97 / 25 / 23.98
1920 x 1080i: 59.94 / 50
1280 x 720p: 59.94 / 50

MPEG HD422
1920 x 1080p: 29.97 / 25 / 23.98
1920 x 1080i: 59.94 / 50
1280 x 720p: 59.94 / 50 / 29.97 / 25 / 23.98

MPEG HD (420)
1920 x 1080p: 29.97 / 25 / 23.98
1920 x 1080i: 59.94 / 50
1440 x 1080p: 29.97 / 25 / 23.98
1440 x 1080i: 59.94 / 50 1280 x 720p: 59.94 / 50 / 29.97 / 25 / 23.98

MPEG IMX
720 x 512p: 29.97 / 25
720 x 512i: 59.94 / 50
720 x 698p: 29.97 / 25
720 x 698i: 29.97 / 25

DVCAM
720 x 480p: 29.97 / 25
720 x 480i: 59.94 / 50
720 x 576p: 29.97 / 25
720 x 576i: 29.97 / 25
Recording/Playback Time exFAT
XAVC-I mode
Approx. 120 min with SBP-128B (128GB) memory card
Approx. 60 min with SBS-64G1A/ SBP-64B (64 GB) memory card
Approx. 30 min with SBS-32G1A (32 GB) memory card
XAVC-L50 mode
Approx. 240 min with SBP-128B (128GB) memory card
Approx. 120 min with SBS-64G1A/ SBP-64B (64 GB) memory card
Approx. 60 min with SBS-32G1A (32 GB) memory card
XAVC-L35 mode
Approx. 340 min with SBP-128B (128GB) memory card
Approx. 170 min with SBS-64G1A/ SBP-64B (64 GB) memory card
Approx. 85 min with SBS-32G1A (32 GB) memory card
XAVC-L25 mode
Approx. 440 min with SBP-128B (128GB) memory card
Approx. 220 min with SBS-64G1A/ SBP-64B (64 GB) memory card
Approx. 110 min with SBS-32G1A (32 GB) memory card
HD 422 50/ SD MPEG IMX mode
Approx. 240 min with SBP-128B (128GB) memory card
Approx. 120 min with SBS-64G1A/ SBP-64B (64 GB) memory card
Approx. 60 min with G49SBS-32G1A (32 GB) memory card
HD 420 HQ mode
Approx. 360 min with SBP-128B (128GB) memory card
Approx. 180 min with SBS-64G1A/ SBP-64B (64 GB) memory card
Approx. 90 min with SBS-32G1A ( 32 GB) memory card
SD DVCAM mode
Approx. 440 min with SBP-128B (128GB) memory card
Approx. 220 min with SBS-64G1A/ SBP-64B (64 GB) memory card
Approx. 110 min with SBS-32G1A (32 GB) memory card

UDF mode
HD 422 50/ SD MPEG IMX
Approx. 240 min with SBP-128B (128GB) memory card
Approx. 120 min with SBS-64G1A/ SBP-64B (64 GB) memory card
Approx. 60 min with G49SBS-32G1A (32 GB) memory card
HD 420 HQ mode
Approx. 360 min with SBP-128B (128GB) memory card
Approx. 180 min with SBS-64G1A/ SBP-64B (64 GB) memory card
Approx. 90 min with SBS-32G1A ( 32 GB) memory card
SD DVCAM mode
Approx. 440 min with SBP-128B (128GB) memory card
Approx. 220 min with SBS-64G1A/ SBP-64B (64 GB) memory card
Approx. 110 min with SBS-32G1A (32 GB) memory card

FAT mode
HD HQ mode
Approx. 400 min with SBP-128B (128GB) memory card
Approx. 200 min with SBS-64G1A/ SBP-64B (64 GB) memory card
Approx. 100 min with SBS-32G1A (32 GB) memory card
HD SP mode
Approx. 560 min with SBS-64G1A (64 GB) memory card
Approx. 280 min with SBS-64G1A/ SBP-64B (64 GB) memory card
Approx. 140 min with SBS-32G1A (32 GB) memory card
SD DVCAM mode
Approx. 520 min with SBP-128B (128GB) memory card
Approx. 260 min with SBS-64G1A/ SBP-64B (64 GB) memory card
Approx. 130 min with SBS-32G1A (32 GB) memory card
Viewfinder
Size 3.5" color LCD
Resolution (H x V) Quarter HD: 960 x 540
Lens
Lens Fujinon 16x Optical Zoom, Servo/Manual
5.8 to 93mm (31.4 to 503mm, 35mm equivalent)
f/1.9 - 16 and Close, auto/manual selectable
Focus AF/MF/Full MF selectable
800 mm to ∞ (MACRO OFF)
50 mm to ∞ (MACRO ON, Wide)
782 mm to ∞ (MACRO ON, Tele)
Filter Diameter 82mm, pitch 0.75mm (on lens)
Audio
Audio Signal Format HD mode: Linear PCM (4 ch, 24 / 16-bit, 48-kHz)
SD mode: Linear PCM (2 / 4 ch, 16-bit, 48-kHz)
General
Input and Output Connectors Output
Composite: 1 x BNC (HD-Y or analog composite)
SDI: 2 x BNC (SD/HD-SDI selectable)
HDMI: 1 x Type A
Timecode: 1 x BNC
Audio: 1 x 5-pin XLR
Earphone: 1 x stereo mini jack
Speaker: 1 x Monaural

Input
Genlock: 1 x BNC
Timecode: 1 x BNC
Audio: 2 x 3-pin XLR (Line/Mic/Mic + 48V Selectable)
Audio: XLR 5-pin (x1 Output)
Speaker: Monaural (x1 Output)

Power
1 x 4-pin XLR

Interface
IEEE 1394: 1 x 6-Pin bi-directional (i.Link / Firewire), HDV / DVCAM
USB: 1 x Type A (host), 1 x type B (USB device)
Lens: 12-pin
Remote: 8-pin
light: 1 x P-Tap (2-pin) Wireless Receiver: 15-pin D-Sub (x1 Input)
Power Requirements 12VDC
Power Consumption With LCD VF, AF lens, mic, while recording in 1080/59.94i:18W (approx.)
Body while recording in 1080/59.94i:15W (approx.)
Operating Temperature 32 to 104F / 0 to 40C
Storage Temperature -4 to 140F / -20 to 60C
Dimensions 4.9 x 10.6 x 13.1" / 124 x 269 x 332 mm
Weight Approximately 7.50 lb / 3.40 kg (without lens, VF, Mic)
  • Brand New Factory Fresh Import Model
